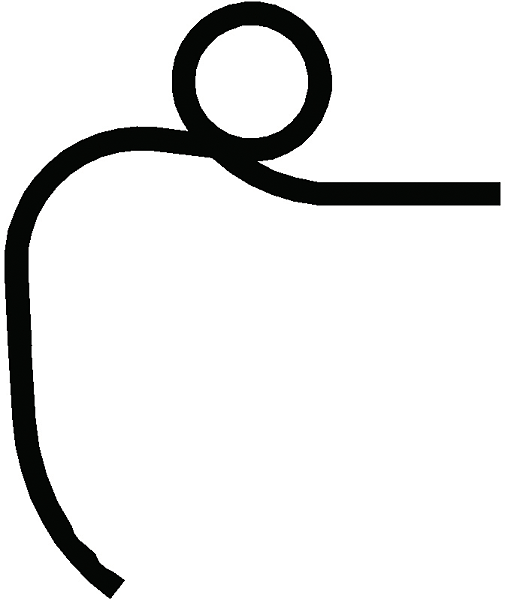

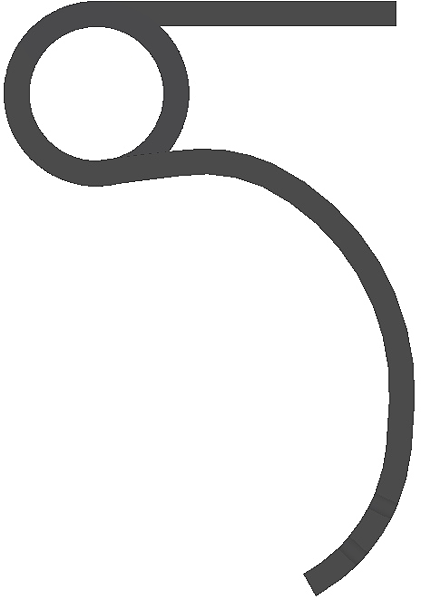

Spiral tines 25x25

Spiral tines or double coil tines of 25 x 25 mm. Manufactured in a special steel with high elasticity and recovery power of the initial geometry. Manufacturing process that prevents the formation and propagation of micro-cracks, reducing the risk of breakage. Epoxy paint with resistance to UV ray degradation and prevents oxidation.

Main product specifications

Ref.	G	A	B	C	D	E	G	M	Grs.	B	F	D
2481-C-D-CA10	25x25	400	450	120	13	45	80	M10	8600	60	12481	100
2481-C-I-CA10	25x25	400	450	120	13	45	80	M10	8600	60	12481	100
2481 D	25x25	425	468	120	15	45	79	M12	8950	95	12481
2481 I	25x25	425	468	120	15	45	79	M12	8950	95	12481
2481-D-CA1	25x25	425	468	120	15	45	79	M10	8950	95	12481	100
2481-I-CA1	25x25	425	468	120	15	45	79	M10	8950	95	12481	100
2481-B D	25x25	390	468	120	17	60	79	M12	8950	100	12481	100
2481-B I	25x25	390	468	120	17	60	79	M12	8950	100	12481	100
2481-H D	25x25	450	395	118	17	33	80	M10	9000	90	12481	100
2481-H I	25x25	450	395	118	17	33	80	M10	9000	90	12481	100
2481-FM D	25X25	90	530	130		45/51	95	M12	10000	100	12481	100
2481-FM I	25X25	90	530	130		45/51	95	M12	10000	100	12481	100
2481-RM D	25X25	700	530	130		51	80	M12	10700	100		100
2481-RM I	25X25	700	530	130		51	80	M12	10700	100		100
