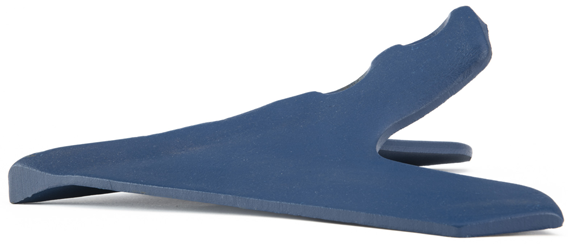

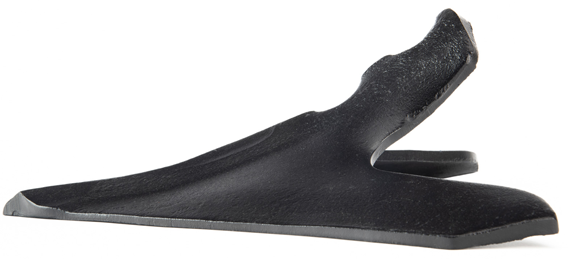

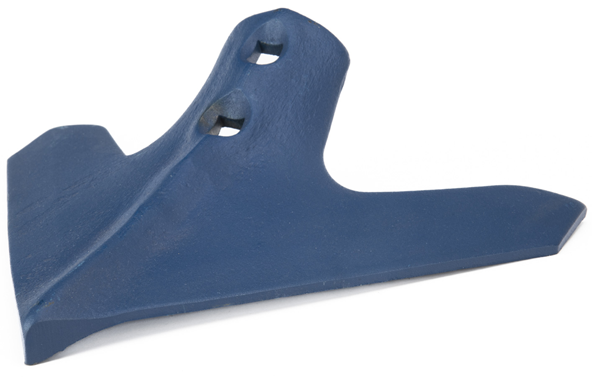

Swallow share 1513 with rib

Swallow share in three versions: with a single rib in 6 or 8 mm thickness, double rib and with 13 Duratop tungsten tips. The wing design maintains the working width of 270mm. The rib reinforces the Swallow, making it last many more hectares. Fits both Ransome arms and Chisel arms.

Main product specifications

Ref. C Grs. A B C D A B E M
1513-A9 CN 6 1550 230 210 45 100 500 1199A M12
1513-A CN 6 CG 6 1750 270 210 45 100 500 1199A M12
1513-A CN 8 CG 8 2150 270 210 45 100 500 1199A M12
1513-A C2N CG 7 2000 270 210 45 100 500 1199A M12

1513-A-CN8 CG / 1513-A-C2N CG / 1513 A C2N CP: painted in blue epoxy painting.

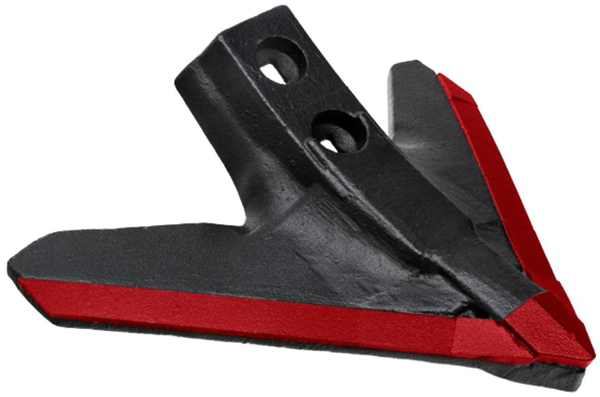

1513 A C2N CP: 13 tungsten carbide plates and reinforced neck

Fits with chisel tine See page, 2481 See page, 2483 See page, 2484 See page, 2485 See page, 2486 See page

Fits in double coil tine

Ref.24812483248424852486 GD
1513- A CN / C2NM12x50M12x50M12x50M12x50M12x50

Fits in Chisel tine

Ref.2461-B2461-C2461-CL2461-D2462-A2462-B2464-A2464-AL24662467
1513-A CN / C2NM12x50M12x50M12x50M12x50M12x60M12x60M12x70M12x70M12x50M12x50
