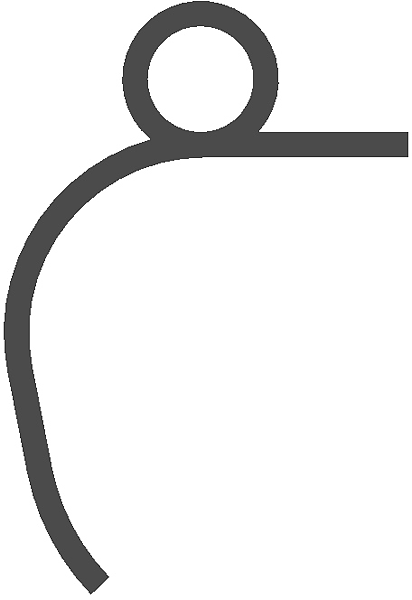

Spiral tines 30x30
Spiral tines or double coil tines of 30 x 30 mm. Manufactured in a special steel with high elasticity and recovery power to the initial geometry. Manufacturing process that prevents the formation and propagation of micro-cracks, reducing the risk of breakage. Epoxy paint with resistance to UV ray degradation and prevents oxidation.
Main product specifications
| Ref. | G | A | B | C | D | E | G | M | Grs. | B | D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2484 D | 30x30 | 496 | 498 | 145 | 21 | 45 | 95 | M12 | 14200 | 60 | |
| 2484 I | 30x30 | 496 | 498 | 145 | 21 | 45 | 95 | M12 | 14200 | 60 | |
| 2484 D GD | 30x30 | 360 | 625 | 360 | 15 | 45 | 95 | M12 | 15000 | 60 | 100 |
| 2484 I GD | 30x30 | 360 | 625 | 360 | 15 | 45 | 95 | M12 | 15000 | 60 | 100 |
D Made-to-order products.
D D = Right (Ref)
I I = Left (Ref)
Clamps. See page
2484 GD: water based painting
See possible assemblies on page Ver página
Fits with 1500 See page, 1506 See page, 1507 See page, 1512 See page, 1513 See page See page, 1535 See page
Fits with 1537 See page, 1571 See page, 1576 See page, 1578 See page, 1579 See page, 1593 See page, 15106 See page
Fin 1500
Fin 1506
Fin 1507
Swallow Point Share 1512 with rib
Wing sweep 1513
Swallow share 1513 with rib
Reversible point 1535 for double coil tine and Chisel
Reversible point 1537 for double coil tine and Chisel
Reversible point 1571, 400mm
Reversible point 1576 for Spiral tine
Reversible point 1578 for double coil tine and Chisel
Reversible point 1579 for Spiral Tine
