Fin 1506

Fin 1506

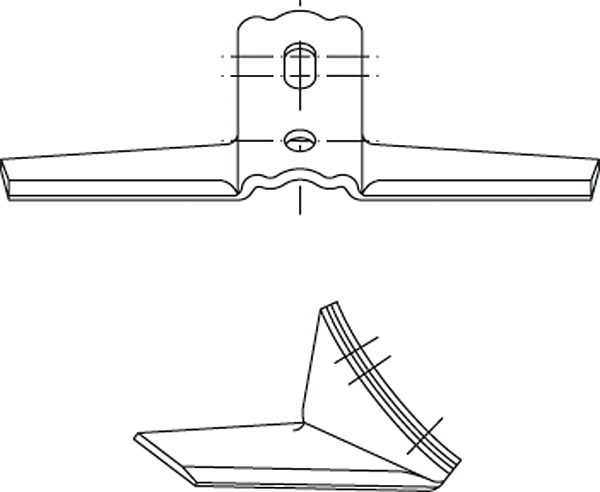

Fin of 8 mm thickness, available in 290 and 335 mm working width. Fits with left-hand or right-hand reversible point 1501 with M12 metric on ransome arms or spiral shanks of 25x25, 27x27, 30x30, 32x32 or 53x53 mm. On chisel arms fits profiles of 45x20, 40x30, 45x20, 25x25, 30x30 mm. Manufactured in Borodur boron steel.

Main product specifications

Ref.	C	Grs.	A	B	C	D	A	B	M	D
1506	8	2000	290	162	45-56	105	12	360	M12
1506 CA 335 E8	8	2200	335	176	45-56	105	12	360	M12

D Made-to-order products.

Fits with chisel tine See page, 2481 See page, 2483 See page, 2484 See page, 2485 See page, 2486 See page

Chisel Tines

Chisel Tines

Spiral tines 25x25

Spiral tines 25x25

Spiral tines 27x27

Spiral tines 27x27

Spiral tines 30x30

Spiral tines 30x30

Spiral tines 32x32

Spiral tines 32x32

Spiral tines 35x35

Spiral tines 35x35

Fits in double coil tine

Ref.	2481	2483	2484	2485	2486
1506 + 1501	M12x60	M12x60	M12x70	M12x70	M12x70

Fits in Chisel tine

Ref.	2461-B	2461-C	2461-CL	2461-D	2466	2467
1506+ 1501	M12x60	M12x60	M12x60	M12x60	M12X60	M12x60
