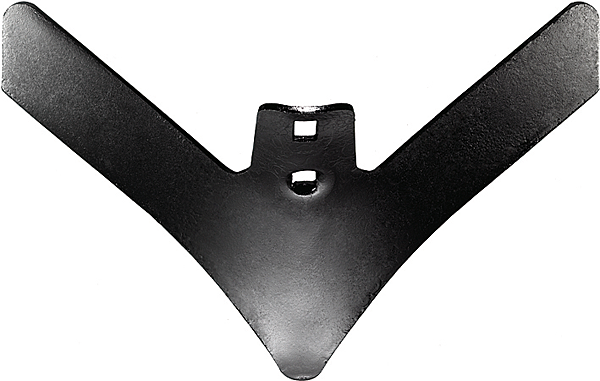

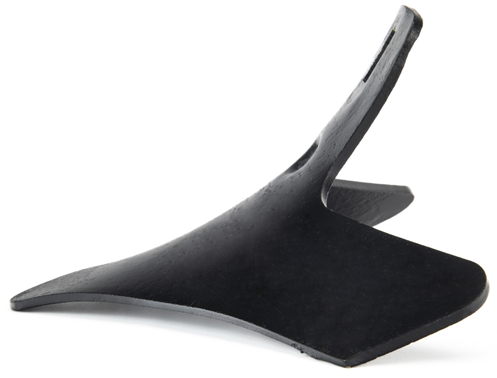

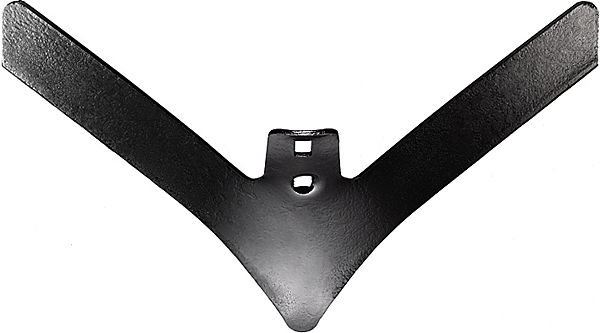

Cultivator point 1511 for Ransome tine

Cultivator point with 4 mm thickness in metric 10, which fits on spiral tines of 20x20, 25x25 and 27x27mm. Available in three different working widths: 200, 300 and 400 mm, all of them with slotted hole from 40 to 45mm centre distance. Manufactured in BORODUR boron steel exclusive to Bellota.

Main product specifications

Ref. C Grs. A B C D A B E M
1511-2 4 550 200 120 40-45 120 12 1080 1199A M10
1511-4 4 700 300 120 40-45 120 12 648 1199A M10
1511-6 4 925 400 120 40-45 120 12 360 1199A M10

Fits with 2481 See page, 2483 See page

Fits in double coil tine

Ref.24812483
1511M10x50M10x50
