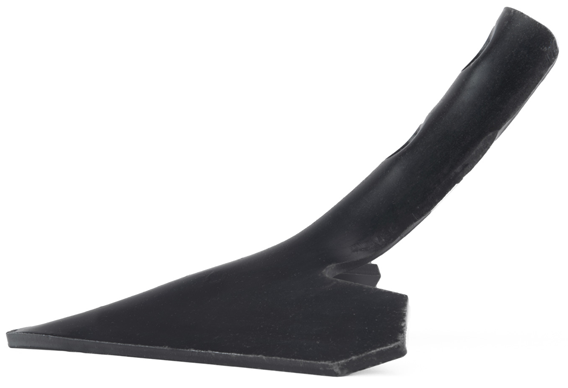

Swallow Point 15038 for Cultivator Tine

Swallow share in 5 and 6 mm thickness and 180, 200, 230 and 260 mm working width for Vibrocultivator tines with M10 metric in 65x12 and 70x12mm profiles. Mounting with oval head bolt, square neck and DIN6927 nut is recommended.

Main product specifications

Ref. C Grs. A B C D B E M
15038 CA 180 E5 5 875 180 200 45 132 500 1199O M10
15038 CA 180 E6 6 1050 180 200 45 132 500 1199O M10
15038 CA 200 E5 5 930 200 200 45 132 500 1199O M10
15038 CA 200 E6 6 1150 200 200 45 132 500 1199O M10
15038 CA 230 E6 6 1200 230 200 45 132 500 1199O M10
15038 CA 260 E6 6 1250 260 200 45 132 500 1199O M10

Fits with 2550 70x12 See page, 2488 65x12 See page, 2489 See page

Fits in S-tine

Ref.2488 C2A / C3A2489 C2A2550 C2A
15038M10x60TCBM10x60TCBM10x60TCB
