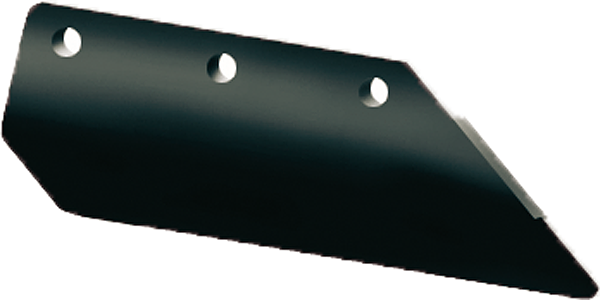

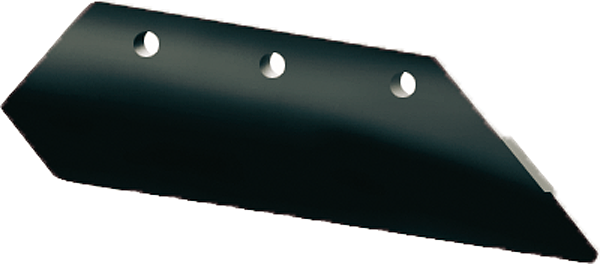

Spare parts for Kuhn ploughs 1371
Main product specifications
| Original Ref. | Ref. | C | Grs. | B | A | B | C | E | M | D |
|---|---|---|---|---|---|---|---|---|---|---|
| 625034 | 1371-1 D | 11 | 3500 | 200 | 452 | 155 | 225 | 1199B | M14 | 100 |
| 625035 | 1371-1 I | 11 | 3500 | 200 | 452 | 155 | 225 | 1199B | M14 | 100 |
| 625036/625100 | 1371-2 D | 11 | 3750 | 200 | 452 | 155 | 285 | 1199B | M14 | 100 |
| 625037/625101 | 1371-2 I | 11 | 3750 | 200 | 452 | 155 | 285 | 1199B | M14 | 100 |
| 625030/625102 | 1371-3 D | 11 | 4100 | 200 | 525 | 155 | 305 | 1199B | M14 | |
| 625031/625103 | 1371-3 I | 11 | 4100 | 200 | 525 | 155 | 305 | 1199B | M14 |
D Made-to-order products.
D D = Right (Ref)
I I = Left (Ref)
