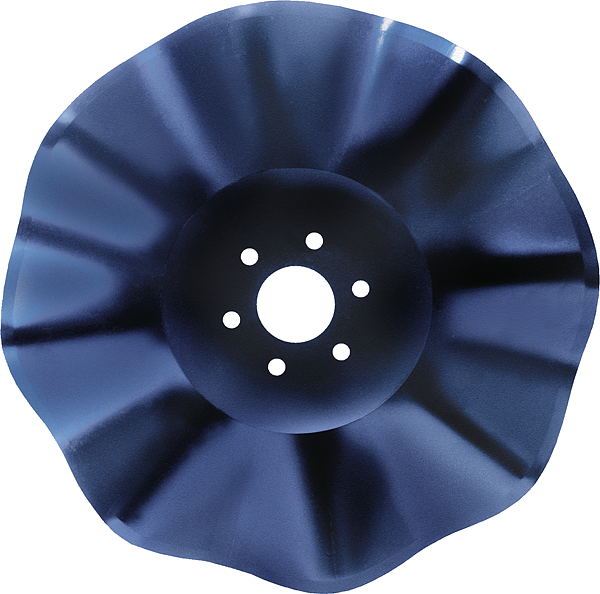

Discs with 8 Waves
This 8-Wave disc is used both in Seeders to work the soil before sowing, as well as in harrows. Given the height of the Waves, it performs aggressive tillage with good penetration and moderate cutting. Model 1994 has a greater wave height than model 1993, therefore, it moves more soil.

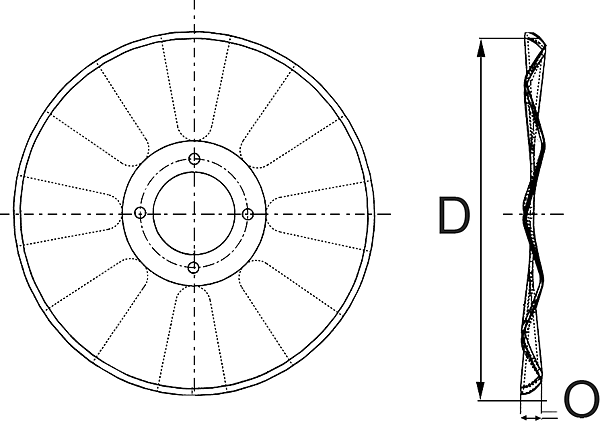

Main product specifications
| Ref. | ø " | ø mm | C | Grs. | B | Nº waves | O | Flat Centre | D |
|---|---|---|---|---|---|---|---|---|---|
| 1993-1454 | 14,5" | 370 mm | 4 | 2930 | 50 | 8 | 19 | 178 mm | 32 |
| 1993-154 | 15" | 383 mm | 4 | 3380 | 50 | 8 | 19,5 | 178 mm | 32 |
| 1993-1545 | 15" | 383 mm | 4,5 | 3800 | 50 | 8 | 20 | 178 mm | 32 |
| 1993-1635 | 16" | 403mm | 3,5 | 3340 | 50 | 8 | 21 | 178 mm | 16 |
| 1993-164 | 16" | 403 mm | 4 | 3830 | 50 | 8 | 21,5 | 178 mm | 16 |
| 1993-1645 | 16" | 403 mm | 4,5 | 4300 | 50 | 8 | 22 | 178 mm | 16 |
| 1993-165 | 16" | 403 mm | 5 | 4780 | 50 | 8 | 22,5 | 178 mm | 16 |
| 1993-1754 | 17,5" | 446 mm | 4 | 4400 | 50 | 8 | 25,5 | 178 mm | 16 |
| 1993-17545 | 17,5" | 446 mm | 4,5 | 4980 | 50 | 8 | 26 | 178 mm | 16 |
| 1993-1755 | 17,5" | 446 mm | 5 | 5550 | 50 | 8 | 26,5 | 178 mm | 16 |
| 1993-184 | 18" | 453 mm | 4 | 4680 | 50 | 8 | 26 | 178 mm | 16 |
| 1993-185 | 18" | 453 mm | 5 | 5840 | 50 | 8 | 27 | 178 mm | 16 |
| 1993-205 | 20" | 520 mm | 5 | 7910 | 50 | 8 | 32,5 | 178 mm | 16 |
| 1993-206 | 20" | 520 mm | 6 | 9390 | 50 | 8 | 33,5 | 178 mm | 16 |
| 1994-144 | 14" | 352 mm | 4 | 2960 | 50 | 8 | 32 | 178 mm | 36 |
| 1994-1635 | 16" | 397 mm | 3,5 | 3340 | 50 | 8 | 37 | 178 mm | 16 |
| 1994-164 | 16" | 397 mm | 4 | 3380 | 50 | 8 | 37,5 | 178 mm | 16 |
| 1994-1645 | 16" | 397 mm | 4,5 | 4300 | 50 | 8 | 38 | 178 mm | 16 |
| 1994-165 | 16" | 397 mm | 5 | 4780 | 50 | 8 | 38,5 | 178 mm | 16 |
| 1994-1745 | 17" | 439 mm | 4,5 | 4980 | 50 | 8 | 46 | 178 mm | 16 |
| 1994-175 | 17" | 439 mm | 5 | 5550 | 50 | 8 | 46,5 | 178 mm | 16 |
| 1994-184 | 18" | 449 mm | 4 | 4680 | 50 | 8 | 46 | 178 mm | 16 |
| 1994-185 | 18" | 449 mm | 5 | 5840 | 50 | 8 | 47 | 178 mm | 16 |
| 1994-205 | 20" | 512 mm | 5 | 7910 | 50 | 8 | 58 | 178 mm | 16 |
| 1994-206 | 20" | 512 mm | 6 | 9390 | 50 | 8 | 59 | 178 mm | 16 |
| 1994-224 | 22" | 545 mm | 4 | 7620 | 50 | 8 | 64 | 178 mm | 16 |
| 1994-2245 | 22" | 545 mm | 4,5 | 8600 | 50 | 8 | 64,5 | 178 mm | 16 |
| 1994-225 | 22" | 545 mm | 5 | 9576 | 50 | 8 | 65 | 178 mm | 16 |
| 1994-226 | 22" | 545 mm | 6 | 10450 | 50 | 8 | 66 | 178 mm | 14 |
D Made-to-order products.
Moderate cut and penetration. Aggressive tilling action.
Consult for other diameter and thickness availability
