Discs with 55 Waves

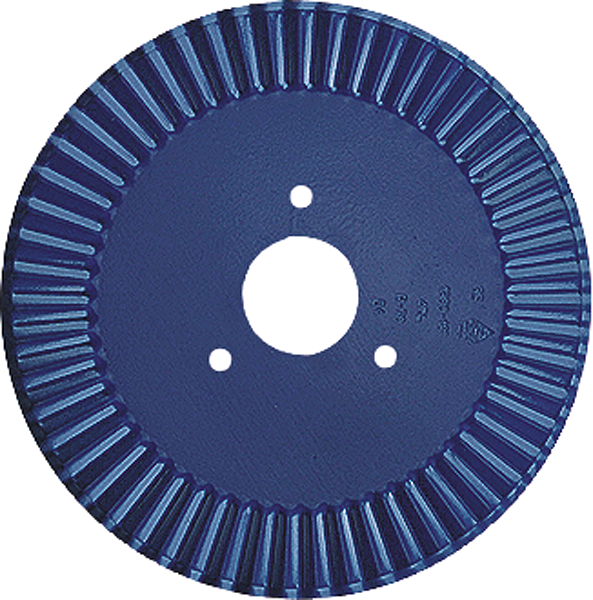

55-Wave Bellota discs manufactured in Borodur boron steel, from 15" to 20" in thickness. These discs have good penetration and cutting performance and carry out medium tillage. They are optimal for variable soil conditions and for all types of speeds.
Main product specifications

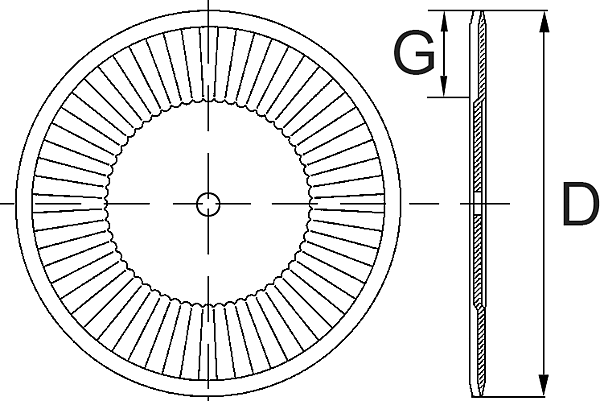

| ø " | ø mm | C | Grs. | B | G | Nº waves | D |
|---|---|---|---|---|---|---|---|
| 15" | 381 mm | 4 | 3300 | 50 | 34,5 | 55 | 33 |
| 16" | 406 mm | 4 | 3830 | 50 | 47 | 55 | 16 |
| 16" | 406 mm | 4,5 | 4300 | 50 | 47 | 55 | 16 |
| 16" | 406 mm | 5 | 4780 | 50 | 47 | 55 | 16 |
| 16,5" | 423 mm | 3,5 | 3480 | 50 | 56 | 55 | 16 |
| 16,5" | 423 mm | 4 | 3990 | 50 | 56 | 55 | 16 |
| 16,5" | 423 mm | 5 | 4980 | 50 | 56 | 55 | 16 |
| 17" | 433 mm | 3,5 | 3700 | 50 | 61 | 55 | 16 |
| 17" | 433 mm | 4 | 4250 | 50 | 61 | 55 | 16 |
| 17" | 433 mm | 4,5 | 4790 | 50 | 61 | 55 | 16 |
| 18" | 457 mm | 4 | 4680 | 50 | 73 | 55 | 16 |
| 18" | 457 mm | 5 | 5840 | 50 | 73 | 55 | 16 |
| 20" | 508 mm | 4 | 5970 | 50 | 73 | 60 | 16 |
| 20" | 508 mm | 4,5 | 5700 | 50 | 73 | 60 | 16 |
| 20" | 508 mm | 5 | 7430 | 50 | 73 | 60 | 16 |
D Made-to-order products.
Good cut and penetration. Minimum tilling action, ideal for variable soil conditions.
