Disc with 5 Lobé type petals
24" and 26" disc with 5 petals, Lobé type, and 28" disc with 6 petals. Manufactured with a 620mm radius. Better penetration in drier soil, but also performs well in wet soil. Allows tillage at higher speed. Made from BORODUR boron steel, exclusive to Bellota.
Main product specifications

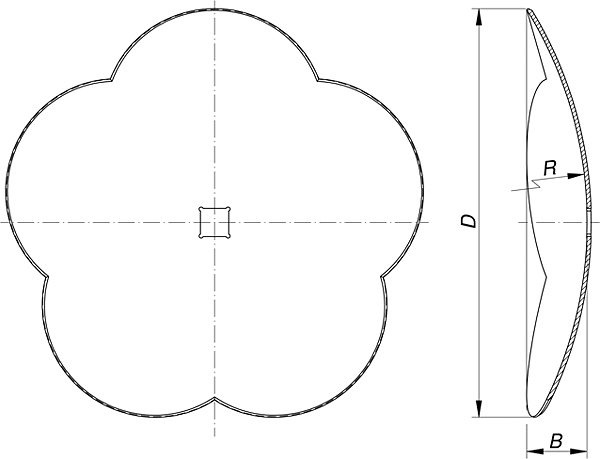

| ø " | ø mm | C | Grs. | B | N. of petals | B | R mm | D |
|---|---|---|---|---|---|---|---|---|
| 24" | 620 | 6 | 12350 | 50 | 5 | 80 | 620 | 14 |
| 26" | 657 | 6 | 15000 | 50 | 5 | 96 | 620 | 12 |
| 28" | 711 | 8 | 17780 | 50 | 6 | 112 | 620 | 12 |
D Made-to-order products.
Penetraits better in dry soil but it also have a good performance in humid soil.
Allows tillage a higher speed.
Thanks to the design of the KIRAI blades, the penetration into the soil is deeper than in traditional disc blades without increasing the tractor power.
