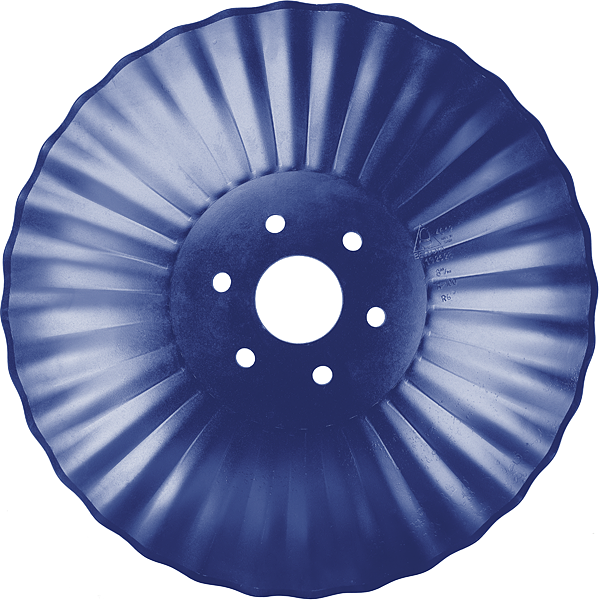

Disc with 32 waves 1926
32-wave Labrador type disc in 18", 20", 22", 24", 26" and 28" recommended for soft soils. Designed with a 680 mm radius. This disc has a longer lifespan than the traditional notched disc. Manufactured in BORODUR boron steel exclusive to Bellota.
Main product specifications

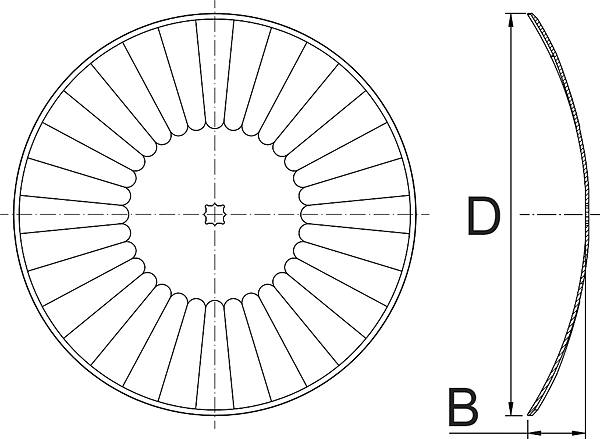

| ø " | ø mm | C | Grs. | B | Nº waves | O | B | R mm | D |
|---|---|---|---|---|---|---|---|---|---|
| 18" | 463 | 6 | 7050 | 50 | 32 | 7 | 40 | 680 | 16 |
| 20" | 515 | 4 | 6180 | 50 | 32 | 8 | 50 | 680 | 16 |
| 22" | 567 | 4 | 7650 | 50 | 32 | 8 | 61 | 680 | 16 |
| 24" | 616 | 5 | 11380 | 50 | 32 | 9 | 73 | 680 | 14 |
| 24" | 616 | 6 | 13540 | 50 | 32 | 10 | 73 | 680 | 14 |
| 26" | 670 | 6 | 16630 | 50 | 32 | 10 | 87 | 680 | 12 |
| 28" | 720 | 8 | 26010 | 50 | 32 | 12 | 101 | 680 | 12 |
D Made-to-order products.
Recommended for soft soils.
The disc has a better lifetime than the conventional notched disc.
