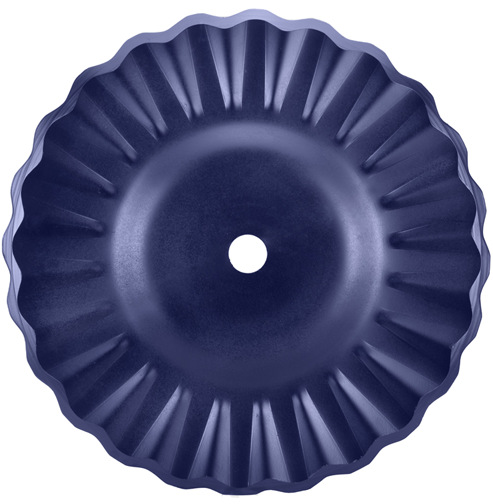

Disc with 24-wave concavity and super-sharp edge 1933
Disc with dished centre with 24 Waves for vertical tillage. The Wave design allows working at higher speed. Extra-sharp edge that cuts residue perfectly and also achieves deep soil penetration. As these ultra-sharp edges wear down, they become more aggressive, ensuring a longer service life. Manufactured in BORODUR boron steel.

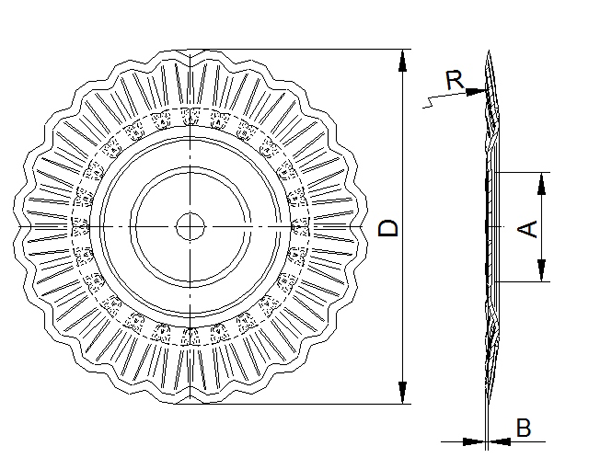

Main product specifications
| ø " | ø mm | C | A | B | R mm | Nº waves | O | Grs. | B | D |
|---|---|---|---|---|---|---|---|---|---|---|
| 20" | 522 | 5 | 178 | 1 | 762 | 24 | 5 | 7600 | 100 | 150 |
| 20" | 522 | 6 | 178 | 1 | 762 | 24 | 5 | 9000 | 100 | 150 |
| 20" | 522 | 6.5 | 178 | 1 | 762 | 24 | 5 | 9700 | 100 | 150 |
| 22" | 575 | 6 | 178 | 4.5 | 762 | 24 | 5 | 11250 | 100 | 150 |
| 22" | 575 | 6.5 | 178 | 4.5 | 762 | 24 | 5 | 12000 | 100 | 150 |
| 24" | 628 | 6 | 178 | 10.5 | 762 | 24 | 5 | 13600 | 100 | 150 |
| 24" | 628 | 6.5 | 178 | 10.5 | 762 | 24 | 5 | 14600 | 100 | 150 |
| 26" | 687 | 6 | 178 | 19 | 762 | 24 | 5 | 16300 | 100 | 150 |
| 26" | 687 | 6.5 | 178 | 19 | 762 | 24 | 5 | 17600 | 100 | 150 |
D Made-to-order products.
Allows tillage a higher speed.
These blades are for Vertical Tillage and are recommended for soft soils as it cuts waste perfectly and it penetrates deeply into the ground.
Furthermore, as the blade gradually wears down, it becomes more aggressive, thus guaranteeing a longer working life for the disc.
