Quick harrow disc support with flange
Quick harrow support in 90x14mm profile that attaches to 60x60 or 70x70 mm frames using a classic clamp or bolt clamp. The Arm requires the addition of the ambidextrous quick harrow support 2512 SB with 19º inclination or the 2512SB R support which is straight for vertical tillage operations.

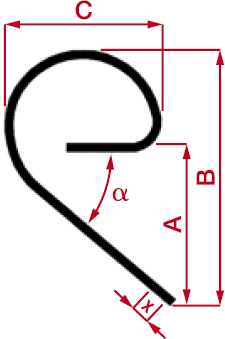

Main product specifications
| Ref. | Chasis | Grs. | G | A | B | C | x1 | x2 | Q | M | B |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2512 BRG A | 60X60 / 70x70 | 9000 | 90X14 | 273 | 429 | 264 | 60 | 30 | 40º | M12 (4) | 100 |

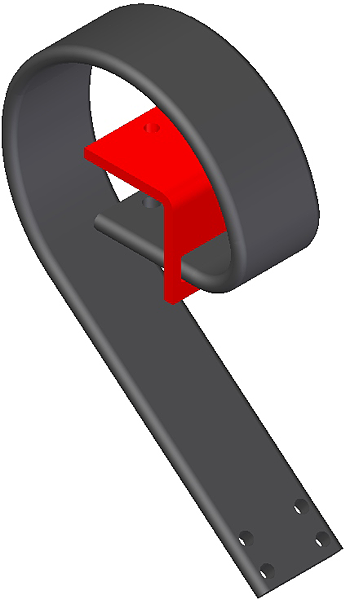

Assembly with clamp
Clamp for 60x60 chasis: 125126060 (M14). Clamp for 70x70 chasis: 125127070 (M14).
Can be assembled using the 2512-SB (ambidextrous and angled) and 2512-SB R (Straight) supports
Quality 12.9 bolts should be used.
