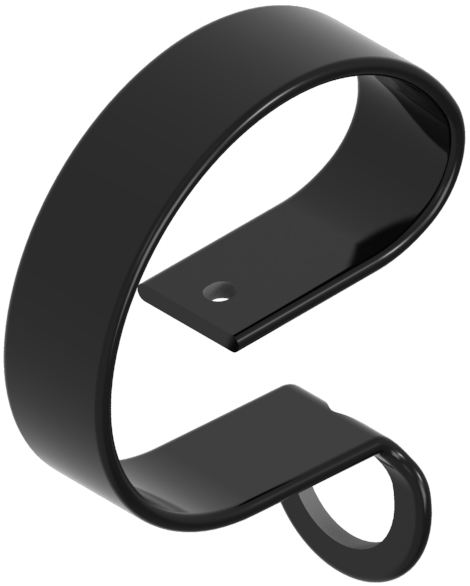

Vibrocultivator tine 2546 80x12mm
Vibrocultivator tine of 80x12 mm that is mounted with the Bellota cultivator with rib 1535S CN. It is recommended to mount with the KIT2546C2A for a perfect fastening. This Tine can be mounted on a maximum frame of 90mm if only the Tine is used or on an 80x80 frame with the reinforcement 2546-R. Bellota offers a clamp with U-bolt for easy mounting for both 70x70 frame and 80x80mm frame.
Main product specifications
| Ref. | G | A | B | C | D | M | Grs. | B | D | S |
|---|---|---|---|---|---|---|---|---|---|---|
| 2546 C2A | 80x12 | 576 | 757 | 323 | 17 | M12 | 8950 | 90 | 100 | 2546R |
CLAMPS DEPENDING ON THE CHASSIS
| Ref. | 70x70 solo brazo | 70x70 con refuerzo | 80x80 solo brazo | 80x80 con refuerzo |
|---|---|---|---|---|
| 2546 | KITBAS7070BR80 | KITBAS7070BR80 | KITBAS8080BR80 | KITBAS8080BR80 |
FRAME WHERE FITS
| Ref. | BASTIDOR MÁXIMO (mm) | BASTIDOR MÁXIMO (mm) |
|---|---|---|
| Solo Brazo | Con Refuerzo | |
| 2546C2A | 90x90 | 80x80 |
