Stubble clearer assembly

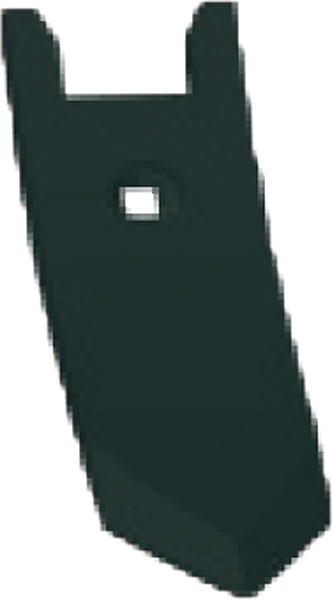

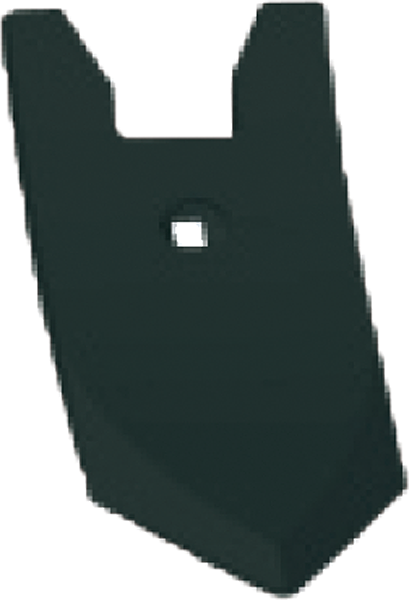

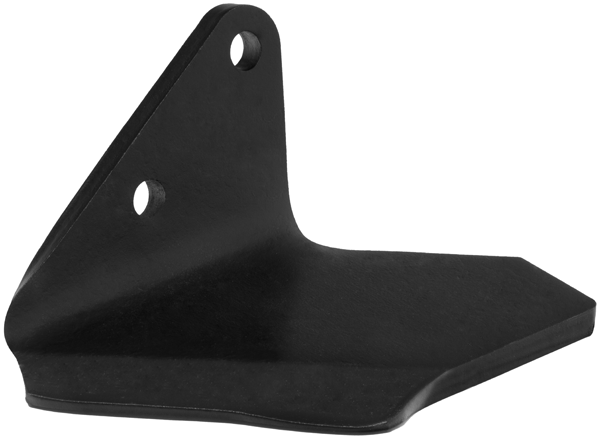

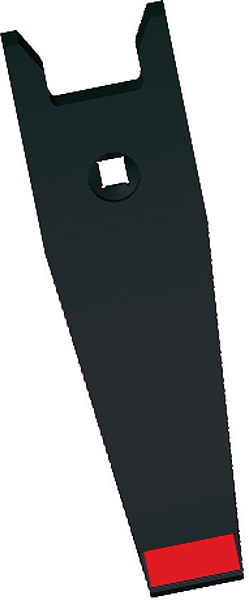

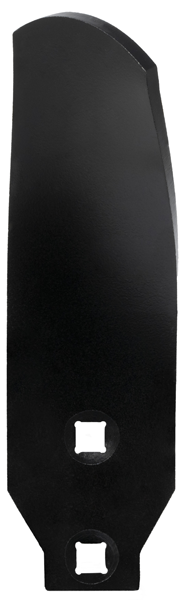

Tip 15055 adaptable to 34060850, 00310915, 00311069 and 34060851 depending on the model. Wide range of wings adaptable to 34060847 and 34060856. Shin 80 34060859 and 34060863 as well as 100 34060853. Manufactured in BORODUR boron steel exclusive to Bellota.
Main product specifications
| Ref. | Original Ref. | C | Grs. | B | A | B | C | E | M | D |
|---|---|---|---|---|---|---|---|---|---|---|
| 15055-A 80 HRS | 34060850 | 12 | 1500 | 500 | 80 | 243 | 1199A | 1285A | ||
| 15055-B CP 80 HRS DURATOP | 00310915 | 15 | 2000 | 300 | 80 | 250 | 1199A | 1285A | ||
| 15055-B80-CP-2A-3P DURATOP | 00311069 | 20-40 | 4030 | 250 | 80 | 275 | 57 | 1199A | 1285A | |
| 15055-B80-CP-2A1-3P DURATOP | 20-40 | 4000 | 250 | 80 | 275 | 45-58 | 1199A | M12 | ||
| 15055-B80-PL-CP-4P DURATOP | 30 | 4300 | 250 | 80 | 275 | 57 | 1199A | 1285A | 100 | |
| 15055-B 120 HRS | 34060851 | 12 | 2300 | 300 | 120 | 1199A | 1285A | 100 | ||
| 15056-A D HRS | 34060857 | 10 | 1700 | 300 | 172,5 | 60 | HEX | M12 | ||
| 15056-A I HRS | 34060856 | 10 | 1700 | 300 | 172,5 | 60 | HEX | M12 | ||
| 15056-A D CA1 HRS | 34060857 | 10 | 1700 | 300 | 172,5 | 60/60 | HEX | M12 | 100 | |
| 15056-A I CA1 HRS | 34060856 | 10 | 1700 | 300 | 172,5 | 60/60 | HEX | M12 | 100 | |
| 15056-B D HRS | 34060855 | 10 | 1250 | 400 | 101 | 60 | HEX | M12 | ||
| 15056-B I HRS | 34060854 | 10 | 1250 | 400 | 101 | 60 | HEX | M12 | ||
| 15056-B D CA1 HRS | 34060855 | 10 | 1250 | 400 | 101 | 60/60 | HEX | M12 | 100 | |
| 15056-B I CA1 HRS | 34060854 | 10 | 1250 | 400 | 101 | 60/60 | HEX | M12 | 100 | |
| 15057-A 80 D HRS | 34060859 | 8 | 1950 | 300 | 80 | 410 | 57 | 1199A | 1285A | |
| 15057-A 80 I HRS | 34060858 | 8 | 1950 | 300 | 80 | 410 | 57 | 1199A | 1285A | |
| 15057-A 80 CENTRAL | 8 | 1385 | 200 | 80 | 305 | 1199A | M12 | |||
| 15057-B 100 D HRS | 34060853 | 8 | 2700 | 300 | 100 | 410 | 57 | 1199A | 1285A | 50 |
| 15057-B 100 I HRS | 34060852 | 8 | 2700 | 300 | 100 | 410 | 57 | 1199A | 1285A | 50 |
| 15058-A 80 D HRS | 34060863 | 8 | 1200 | 400 | 80 | 260 | 57 | 1199A | 1285A | 50 |
| 15058-A 80 I HRS | 34060862 | 8 | 1200 | 400 | 80 | 260 | 57 | 1199A | 1285A | 50 |
D Made-to-order products.
D D = Right (Ref)
I I = Left (Ref)
15056-A: 370 mm working width 2 wings and tine
15056-B: 240 mm working width 2 wings and tine
HEX: DIN 931 hexagonal screw and DIN 934 nut, ref. 1199H1260A without Bellota markings
DURATOP: Point with tungsten carbide
Fits with 2823 tine. See page

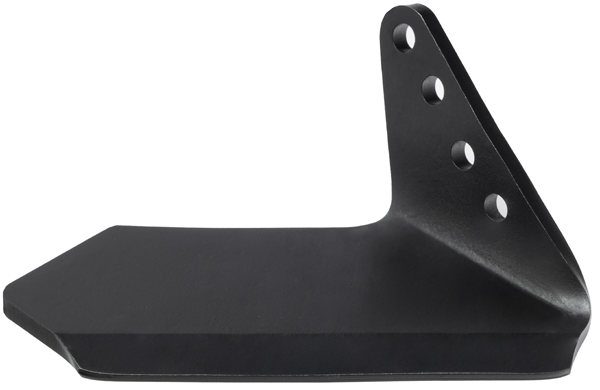

15056 A/B CA1: with four holes.
15058 CA1: 1 mounting hole
