Reversible point Kongskilde for Vibro Tines

Reversible point Kongskilde for Vibro Tines

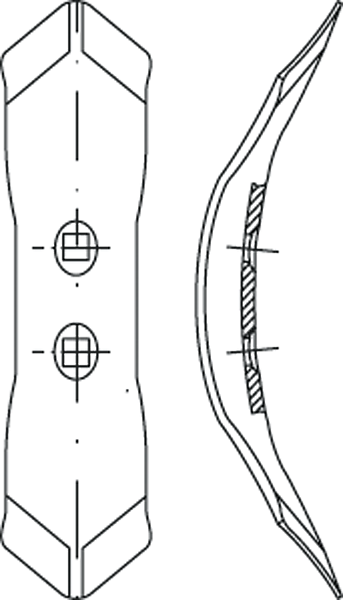

Reversible point for Kongskilde Vibro Flex Arm. Model 10500483 is manufactured in 6 mm and model 105000504 in 8 mm, both with a width of 70mm. Model 101000580 is 6 mm but with a width of 74mm and 262mm long. All these points are mounted on the Bellota 2454 Arm, or Kongskilde VF type. Supplied with bolts.

Main product specifications

Ref.	Original Ref.	C	Grs.	A	B	C	A	B	E	M	D
1502-6	105000483	6	825	70	288	45	12	648	1199O	M12
1502-6-B	101000580	6	765	74	262	45	12	648	1199O	M12	100
1502-8	105000504	8	1100	70	288	45	12	648	1199O	M12

D Made-to-order products.

With bolts

Fits with 2454 tine See page

Vibro tine VF type by Kongskilde

Vibro tine VF type by Kongskilde

Fits in Vibro-Bellota tine

Ref.	2454
1502	M12x50TS
