Cultivator Kongskilde 100323040

Cultivator Kongskilde 100323040

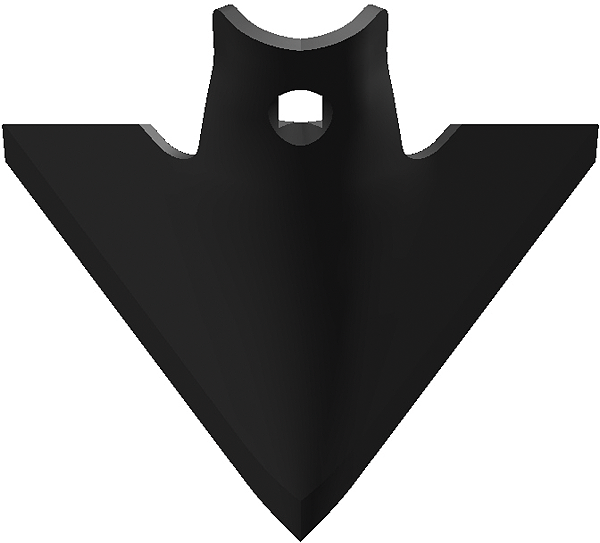

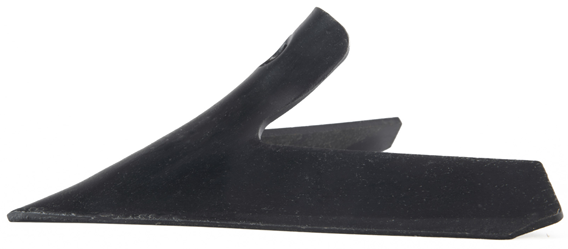

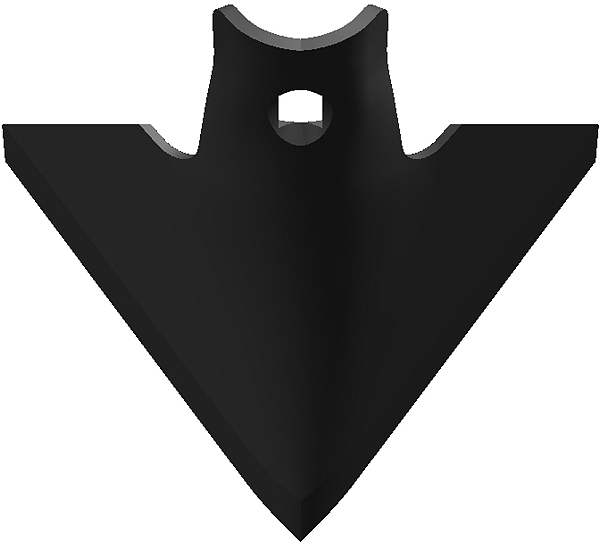

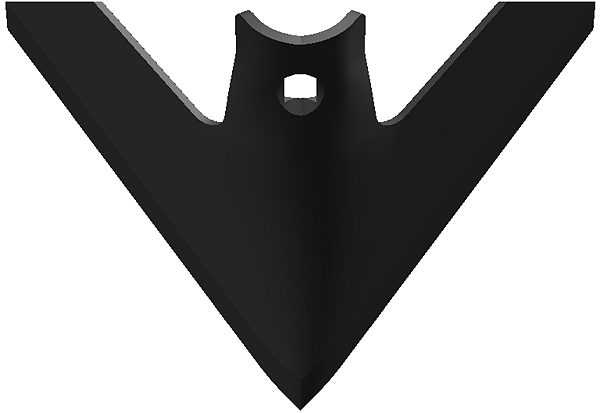

Cultivator for Vibrocultivator tine of 32x10 and 32x12mm in 4 and 6 mm thickness and for working widths of 150, 175, 200 and 250 mm. The model in 6mm thickness and 175 working width is adaptable to Kongskilde 100323040. All models are fitted with oval head bolt, 10mm square neck.

Main product specifications

Ref.	Original Ref.	C	Grs.	A	B	D	B	E	M	D
15001 A		4	475	150	125	76	2000	1199O	M10
15001 B		4	490	175	125	76	1800	1199O	M10
15001 C		4	515	200	125	76	1500	1199O	M10
15001_D		4	600	250	125	76	1100	1199O	M10
15001 A6		6	610	150	125	76	1500	1199O	M10	100
15001 B6	100323040	6	700	175	125	76	1200	1199O	M10	100
15001 C6		6	770	200	125	76	1000	1199O	M10	100
15001_D6		6	900	250	125	76	800	1199O	M10	100

D Made-to-order products.

Fits with 2470 32x10 See page, 2472 32x12 See page

Vibrocultivator tine 2470 32x10mm

Vibrocultivator tine 2470 32x10mm

Vibrocultivator tine 2472 in 32x12mm

Vibrocultivator tine 2472 in 32x12mm

Fits in S-tine

Ref.	2470	2472
15001	M10x40TS	M10x40TS
