Scarifier tine 15046

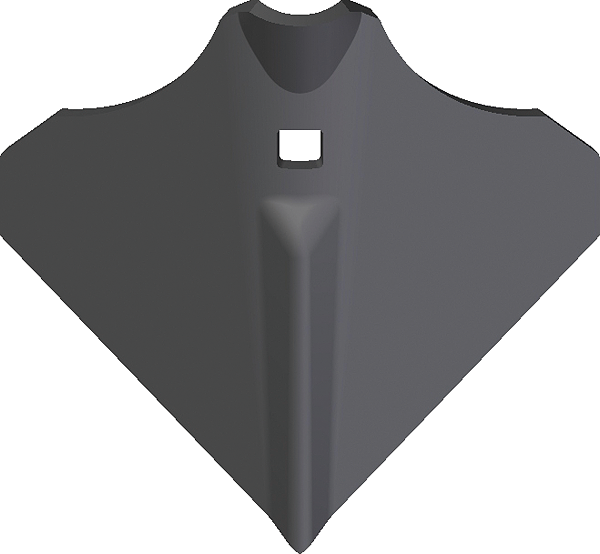

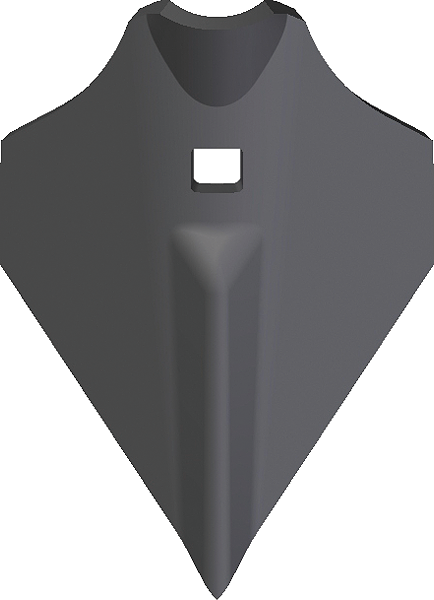

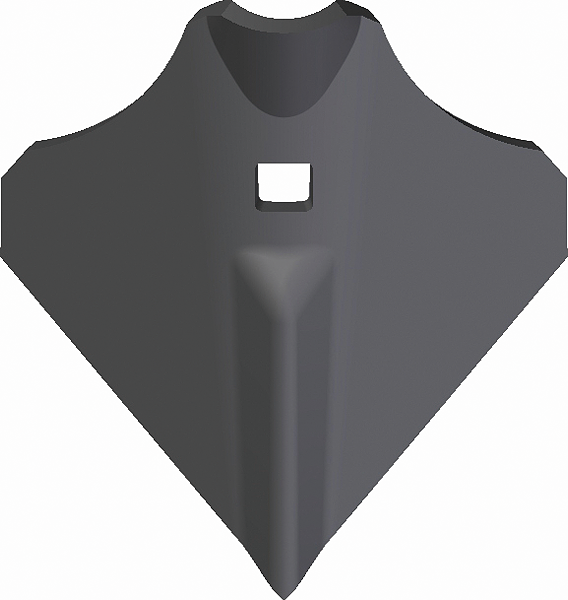

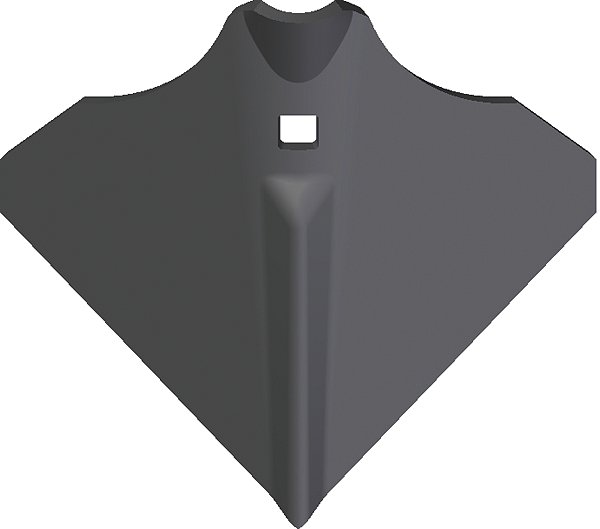

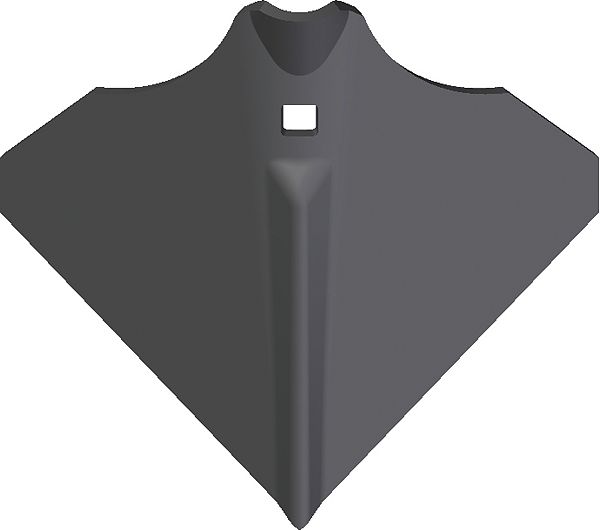

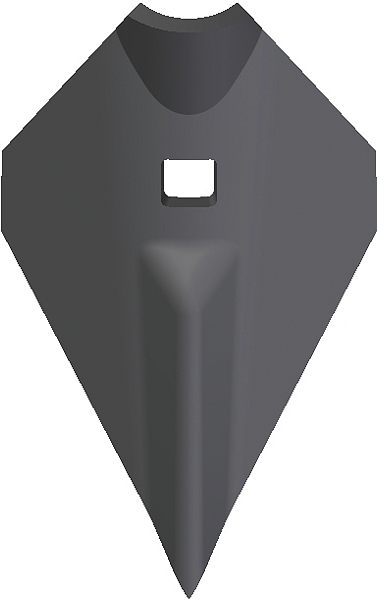

Scarifier point 20LW with stamped rib in 6 mm thickness and in various working widths: 4, 5, 6, 7, 8, 9 or 10". Fitted with round head bolt, square neck, metric 12. Manufactured in Borodur boron steel exclusive to Bellota. Fits Chamberlain, Horwood Bagshaw, Shearer and others.
Main product specifications
| Ref. | C | Grs. | A | B | D | B | E | M | D |
|---|---|---|---|---|---|---|---|---|---|
| 15046 CA 4" E6 | 6 | 560 | 105 | 177 | 56 | 1500 | 1199G | M12 | 100 |
| 15046 CA 5" E6 | 6 | 720 | 130 | 168 | 80 | 1300 | 1199G | M12 | 100 |
| 15046 CA 6" E6 | 6 | 890 | 155 | 183 | 85 | 1100 | 1199G | M12 | 100 |
| 15046 CA 7" E6 | 6 | 970 | 180 | 180 | 92 | 1000 | 1199G | M12 | 100 |
| 15046 CA 8" E6 | 6 | 1200 | 205 | 186 | 110 | 800 | 1199G | M12 | 100 |
| 15046 CA 9" E6 | 6 | 1380 | 230 | 198 | 118 | 600 | 1199G | M12 | 100 |
| 15046 CA 10" E6 | 6 | 1750 | 255 | 223 | 130 | 500 | 1199G | M12 | 100 |
D Made-to-order products.
