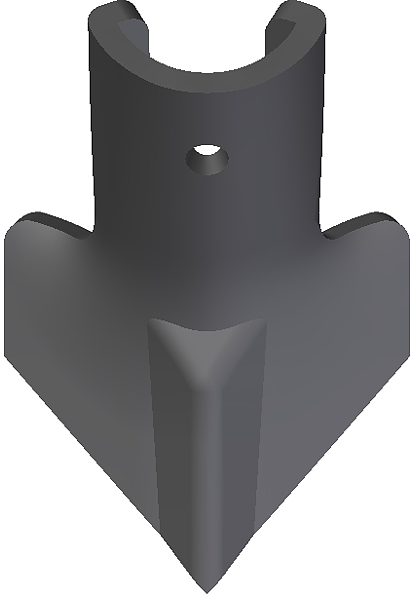

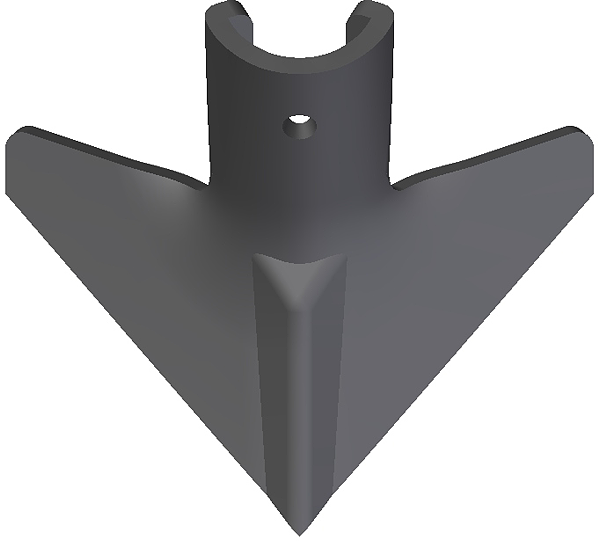

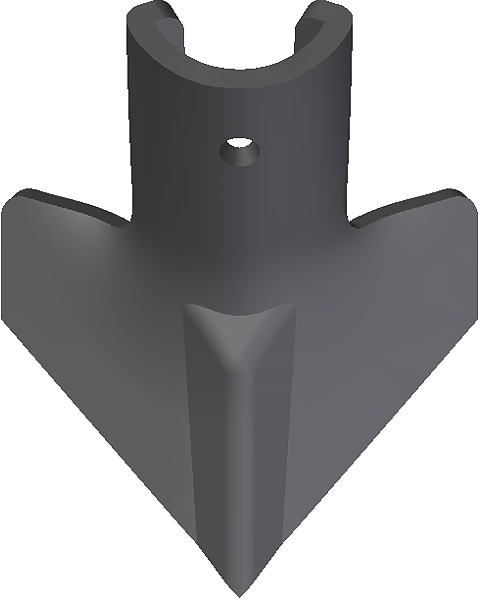

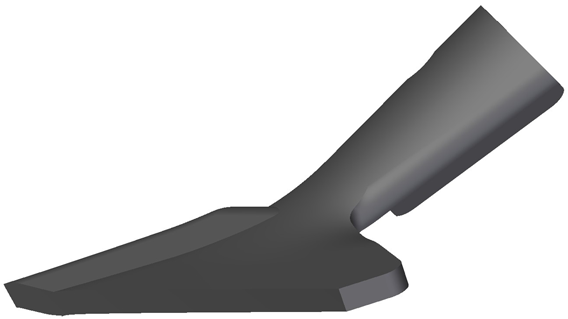

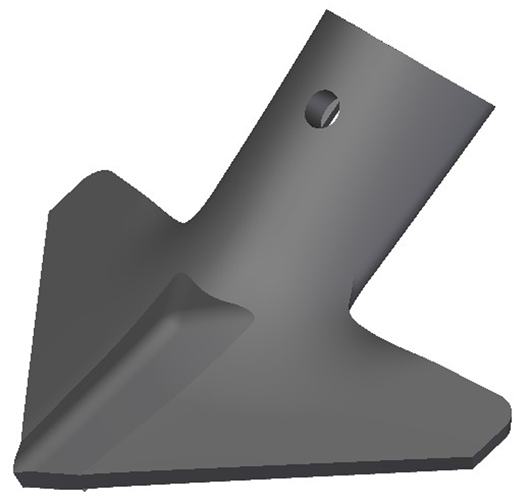

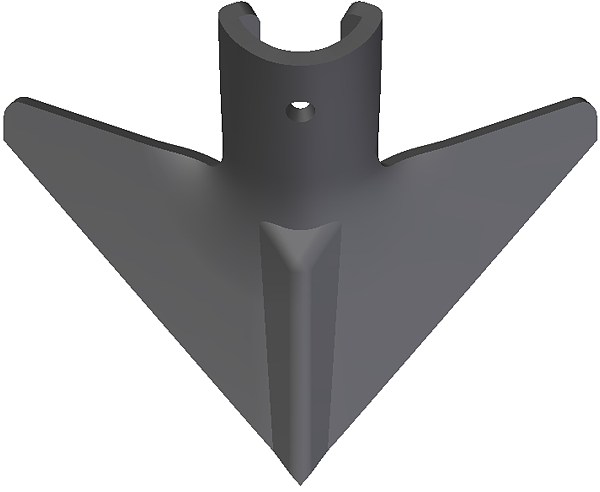

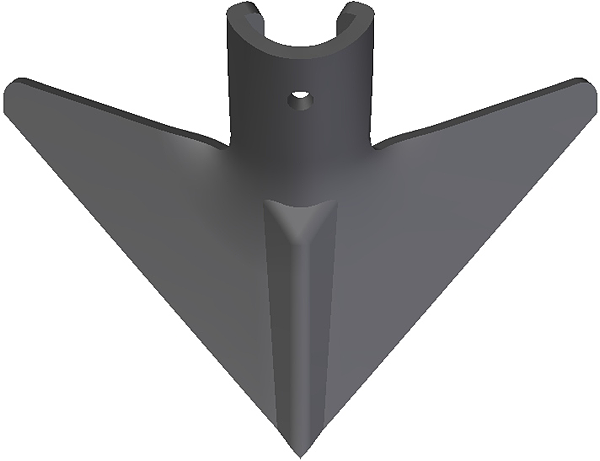

Cultivator point 15049 with rib
M2 type cultivator point with ridge, 6 mm thick and 45°. Available in 2, 2.5, 4, 5, 6, 7 and 8" working widths. Shank designed for slip-on mounting, which slides on and secures with a clip. Made from Bellota exclusive Borodur boron steel.
Main product specifications
| Ref. | C | Grs. | A | B | D | B | D |
|---|---|---|---|---|---|---|---|
| 15049 CA 2" CN E6 | 6 | 350 | 2"-75mm | 93 | 65 | 1500 | 100 |
| 15049 CA 2,5" CN E6 | 6 | 400 | 2,5"-85mm | 109 | 70 | 1200 | 100 |
| 15049 CA 4" CN E6 | 6 | 440 | 4"-105mm | 116 | 72 | 1200 | 100 |
| 15049 CA 5" CN E6 | 6 | 500 | 5"-135mm | 116 | 72 | 1000 | 100 |
| 15049 CA 6" CN E6 | 6 | 620 | 6"-155mm | 126 | 75 | 1000 | 100 |
| 15049 CA 7" CN E6 | 6 | 730 | 7"-180mm | 132 | 77 | 750 | 100 |
| 15049 CA 8" CN E6 | 6 | 820 | 8"-200mm | 139 | 79 | 700 | 100 |
D Made-to-order products.
