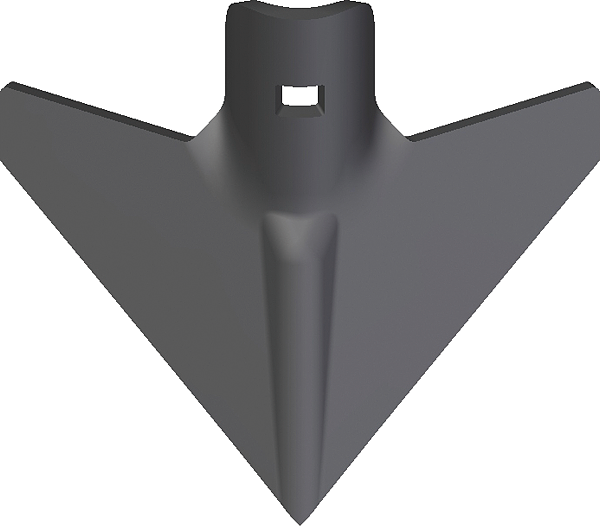

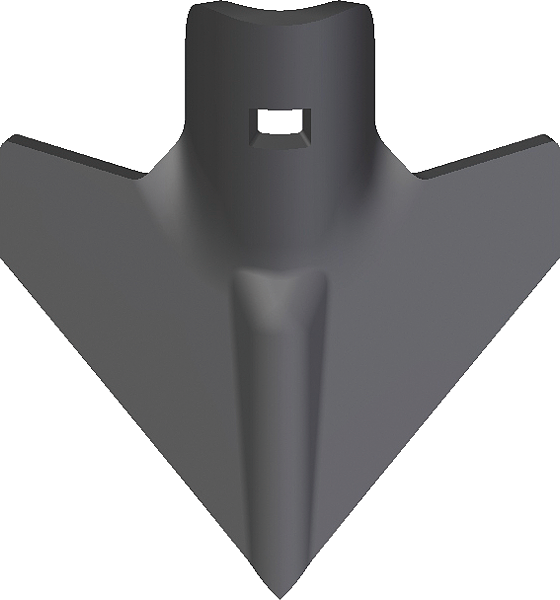

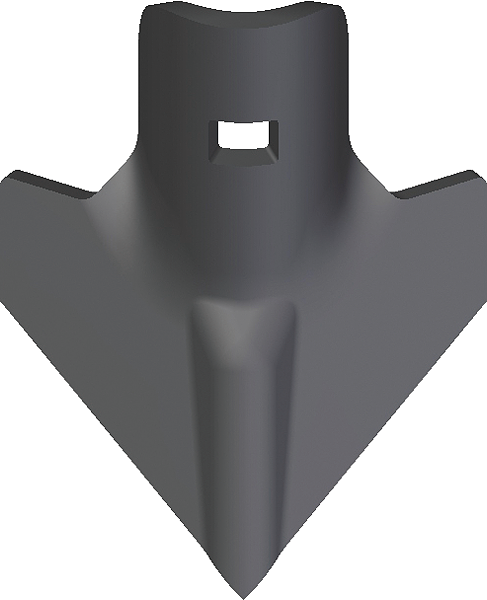

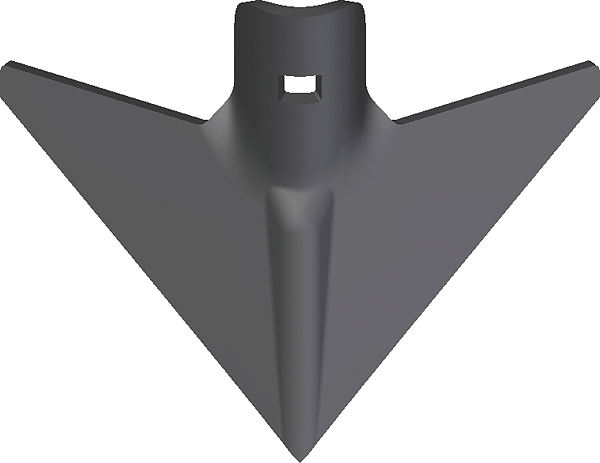

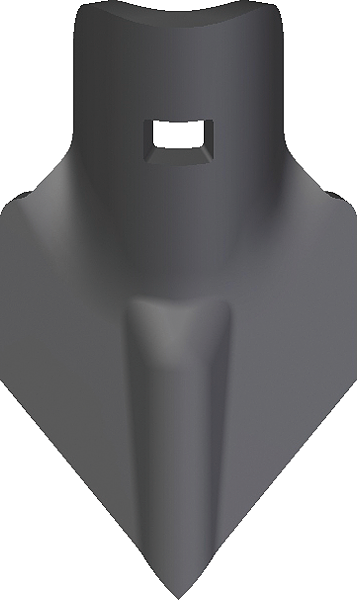

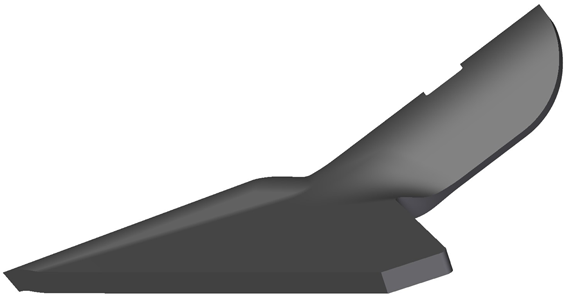

Cultivator point 15047 with rib
Cultivator point type 61U with rib, 6 mm thickness and 38º. Available in 2.5, 4, 5, 6, 7 and 8" working width. Fitted with oval head bolt, special collar metric 11. For Shearer, Ford, Gyral and other Australian machines. Manufactured in Borodur boron steel exclusive to Bellota.
Main product specifications
| Ref. | C | Grs. | A | B | D | E | M | D |
|---|---|---|---|---|---|---|---|---|
| 15047 CA 2,5" CN E6 | 6 | 380 | 75 | 122 | 70 | 1199I | M11 | 100 |
| 15047 CA 4" CN E6 | 6 | 430 | 102 | 122 | 70 | 1199I | M11 | 100 |
| 15047 CA 5" CN E6 | 6 | 550 | 130 | 132 | 73 | 1199I | M11 | 100 |
| 15047 CA 6" CN E6 | 6 | 550 | 152 | 132 | 73 | 1199I | M11 | 100 |
| 15047 CA 7" CN E6 | 6 | 740 | 178 | 150 | 78 | 1199I | M11 | 100 |
| 15047 CA 8" CN E6 | 6 | 770 | 203 | 150 | 78 | 1199I | M11 | 100 |
D Made-to-order products.
