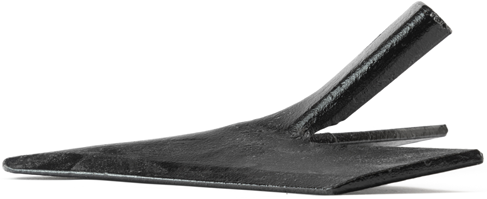

Cultivator point 15029 adaptable to Nichols UWQC
Cultivator sweep adaptable to Nichols UWQC at 47º with variable thickness from 6 to 7.5 mm. Available in 4 different working widths: 7, 8, 9 and 10 inches. Shank designed for the Nichols Ultrawing quick-change system. Reinforced point for longer durability.
Main product specifications
| Ref. | Original Ref. | R | C | Grs. | A | B | D | B | D |
|---|---|---|---|---|---|---|---|---|---|
| 15029-C7 | UWQC7 B/F | 47º | 6-7,5 | 1340 | 180 | 220 | 100 | 500 | 100 |
| 15029-D8 | UWQC8 B/F | 47º | 6-7,5 | 1430 | 203 | 220 | 100 | 450 | 100 |
| 15029-E9 | UWQC9 B/F | 47º | 6-7,5 | 1520 | 228 | 220 | 100 | 400 | 100 |
| 15029-F10 | UWQC10 B/F | 47º | 6-7,5 | 1620 | 254 | 220 | 100 | 350 | 100 |
D Made-to-order products.
