Chisel Tines for vineyard
Chisel tines of 30x30 and 35x35 mm in both right-hand or left-hand versions for working in vineyards. Manufactured in special steel with high elasticity and ability to recover the initial geometry. Manufacturing process that prevents the formation and propagation of micro-cracks. Painted with epoxy paint with high resistance to UV ray degradation and prevents oxidation.

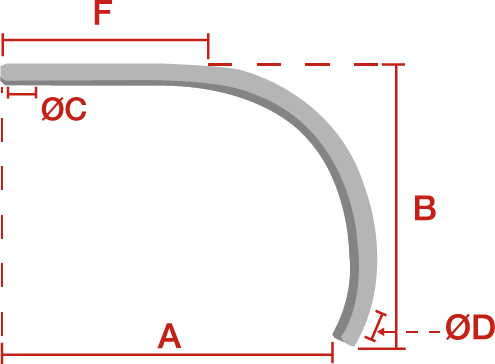

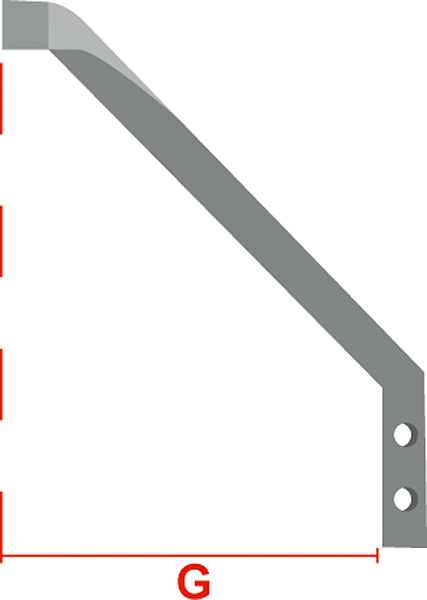

Main product specifications
| Ref. | G | A | B | C | D | E | F | G | Grs. | B | D |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 2467-V D | 30X30 | 470 | 395 | 17 | 45 | M12 | 200 | 5800 | 90 | ||
| 2467-V I | 30X30 | 470 | 395 | 17 | 45 | M12 | 200 | 5800 | 90 | ||
| 2467-35 V D TL | 35x35 | 495 | 450 | 16,5 | 45 | M12 | 100 | 200 | 9100 | 80 | 100 |
| 2467-35 V I TL | 35x35 | 495 | 450 | 16,5 | 45 | M12 | 100 | 200 | 9100 | 80 | 100 |
D Made-to-order products.
D D = Right (Ref)
I I = Left (Ref)
V: Models specially designed for vineyard
2467-35 V TL: with lateral hole
